Dimensions of coil model: 19.6cm*9.5cm*10.0cm (H) / 7.71″ *3.74″ *3.93″ (H)
Net weight: 300g / 10.14 oz
Gross weight: 400g / 13.52 oz
Power supply: AC to DC power supply
1*SG302 extra spark gaps (gas discharge tubes): specification 2R3000 2feet 3000V
We put one extra additional spark gap(SG302) as spare parts, if you need more in the future, please contact, us for an offer.
You can see the main schematic diagram in the baseboard backside.
Estimated output voltage:10KV
Resonant frequency in MHz:5MHz

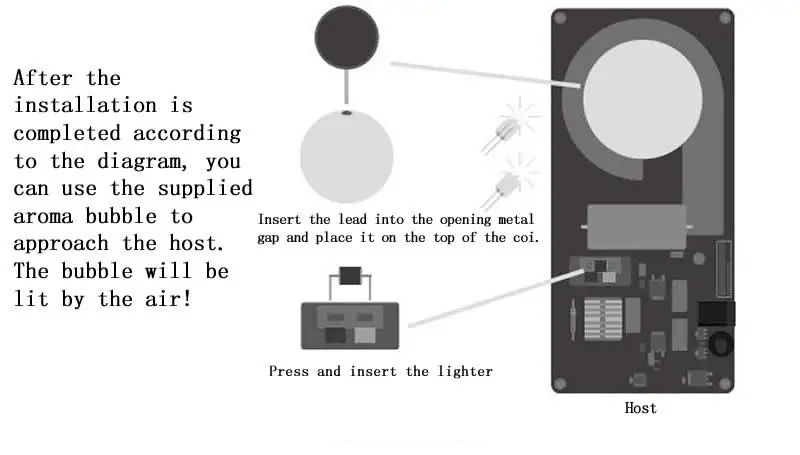

Instructions:
1. Insert the wire on top through the hole into the ball;
2. Plugin the power supply
3. Turn the switch on.
In the box:
1*Tesla coil model
1*USB cable
1*Metal ball
Attention:
1. Not suitable for people with electronic medical instruments;
2. You need to keep your room dark to see the arc;
3. It would produce a smell as the artificial lightning would turn O2 into O3 in the air, which is totally fine for your health at this level of density;
4. Avoid placing it on a metal desk, as metal would absorb the model’s energy;
5. The arc is completely fine to touch, the current is pretty low;
6. Do not touch the light which would cause sting to your finger;
7. It is suggested that you turn off the model by the switch on board, rather than directly pulling out the USB cable.
