Products Details:

Test Environment Standard

Every characteristic of the inspection must be normal temperature and humidity carry out the test, temperature 25±5°, and relative humidity 65±10% of judgment made in accordance with this specification standard testing conditions.

Electrical Specification

• Operating speed(at 4.8V no load):  0.12 Sec/60°
• Running current(at 4.8V no load):  140 m A
• Stall torque(at locked 4.8V):  2.0 kg-cm
• Stall current(at locked 4.8V):  520 m A
• Idle current(at stopped 4.8V):  5 m A
• Operating speed(at 6.0V no load):  0.09 Sec/60°
• Running current(at 6.0V no load):  200 m A
• Stall torque(at locked 6.0V):  2.5 kg-cm
• Stall current(at locked 6.0V):  700 m A
• Idle current(at stopped 6.0V):  5 m A

Control Specification

• Control system:  Pulse width modification
• Operating travel:  90°±5°
• Neutral position:  1500 μ sec
• Rotating direction:  Clockwise(When 1000~2000μ sec)
• Pulse width range:  750～2250 μ sec
• Maximum travel:  Approx 140 °(When 750～2250 μ sec)

specification

• Connector wire length:  190±5 mm
• Limit angle:  200°±10°
• Weight:  9 grams(without servo horn and screw)
• Connector wire gauge:  #28 AWG
• Horn gear spline:  21T

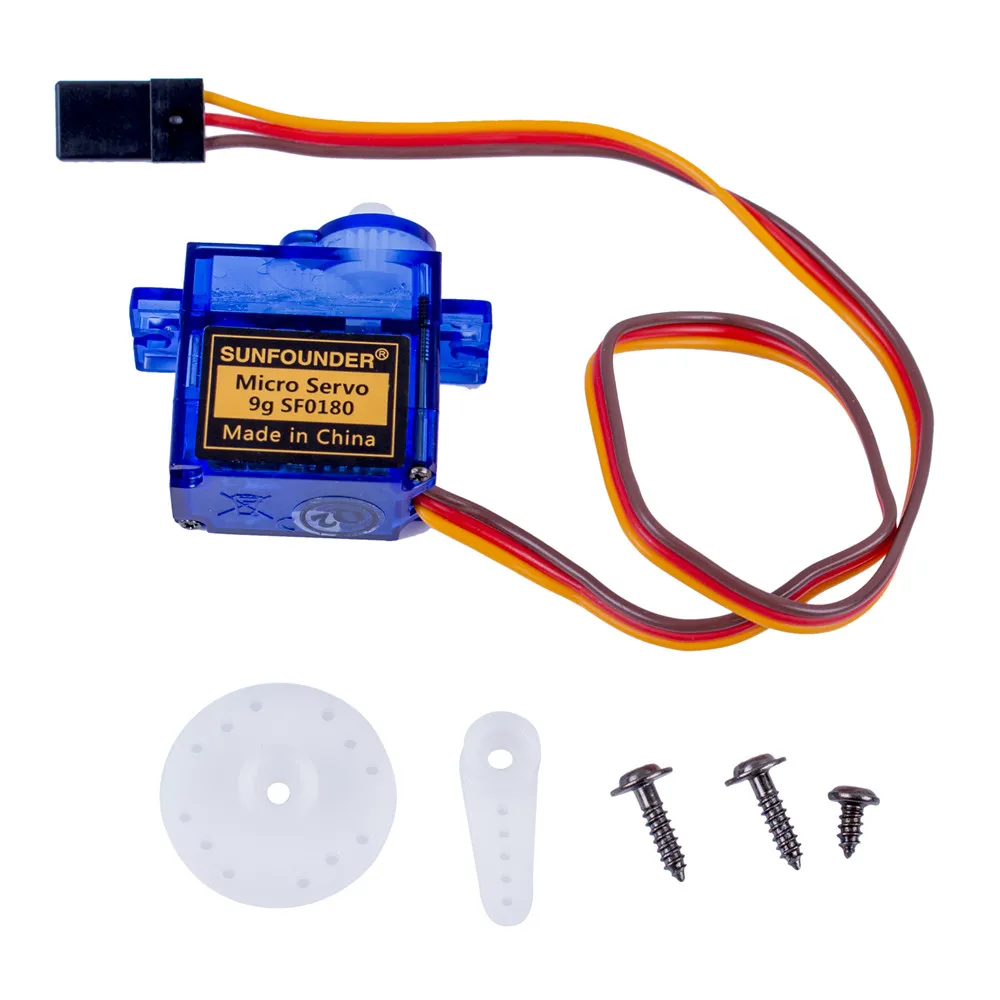

• Horn type:  1/Cross, Two blades, One blade, Circle.
• 2/ Cross, Two blades, one blade.

Feature

• Pack of two micro servos
• Operating Voltage Range is 4.8V~6.0V
• Temperature range is -55 to +75
• Dead band width is 5usec
• Exquisite small, suitable for a variety of R/C Toys

Package Content:

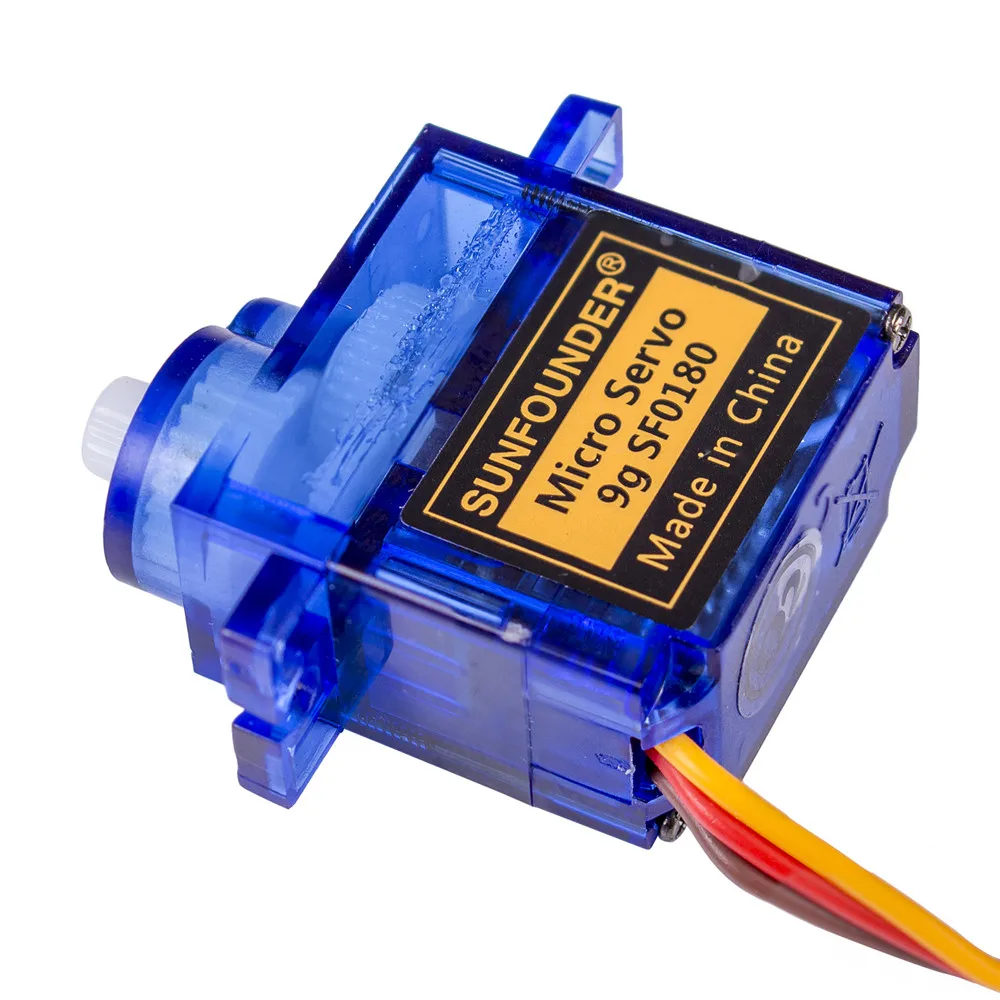

2* SF0180 Micro Digital Servo Motor
